Outwater Offers Nova Sheet LED Backlighting System

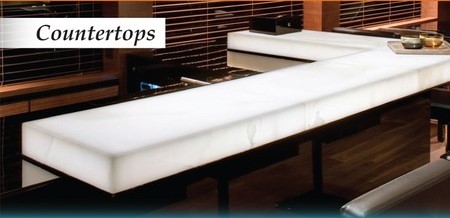

Outwater Nova Sheet LED BacklightingManufactured to your specifications in any size, shape or color with several single- or double-sided lighting options to choose from, Outwater’s Nova Sheet LED Backlighting System’s Panels are designed to fit directly behind or beneath any flat translucent surface to without additional installation. Produced from optical-grade PMMA acrylic light guide plates, the panels are laser etched with multiple grooves at precise locations using patented 3-D V-Cutting Technology to create a uniform matrix. This medium serves to maximize and disperse even, edge-lit “frameless” illumination from the sheet’s discreetly integrated LEDs in its recessed edges across the entire surface of the panel. The system reportedly uses 70 percent less power than comparable fluorescent lighting and employs patented heat sink technology that increases the LED lifespan to approximately 70,000 hours. Light output can be tailored from 2,000 to 10,000 lux by means of an available inline dimmer with an adjustable color temperature range from 3,000K (warm white) to 5,300K (pure/cool white). UL approved for all types of projects, the backlighting panels weigh 2 lbs. per sq. ft., and are offered in sizes from 2-in. by 2-in. by 5/16-in. in depth (50mm by 50mm by 8mm) up to 59-in. wide by 118-in. long by 5/16-in. in depth (1499mm ny 2997mm ny 8mm). They are available in RGB and a variable white Color Changing Temperature (CCT) formats, allowing any desired color or shade of white.
